A nitrous oxide regulator is the device that connects your N2O tank to your whipped cream dispenser or wine preservation system, reducing high cylinder pressure to a controlled working level. Without one, gas exits at full tank pressure — inconsistent, wasteful, and potentially damaging to your equipment. With the right regulator, you control exactly how much gas flows, which translates to repeatable results whether you're topping a dessert or preserving an open bottle of Burgundy for the week. This guide covers regulator types, key specifications, and how to match your setup to the work you actually do.
How a Nitrous Oxide Regulator Works
A regulator sits between the tank valve and the hose that feeds your dispenser. Inside, a spring-loaded diaphragm reduces the incoming pressure — which in a full 580g tank can reach 800 psi or more — to a lower, adjustable output pressure. You set the output using a knob or dial, and the diaphragm maintains that level regardless of how much gas remains in the tank.
Two gauges do distinct jobs. The high-pressure gauge reads the remaining gas in the cylinder, so you know when you're running low mid-service. The low-pressure gauge shows the output pressure going to your dispenser, letting you dial in the exact bar level for the cream volume you're charging. For a 250 ml dispenser, that's typically around 12 bar (174 psi). A single-gauge model omits the tank-level reading, which is fine for occasional home use but frustrating in a busy kitchen.
Most culinary regulators thread directly onto M11×1mm valve threads — the standard on Galaxy Gas tanks, most 580g and 615g cylinders, and the larger 3.3L format. Check your tank's valve thread before purchasing.
Single-Gauge vs. Dual-Gauge: Which Type Do You Need?
The choice between regulator types comes down to how often you use N2O and how much control you want over the process. The table below compares the two configurations across the features that matter most for culinary use.
| Feature | Single-Gauge Regulator | Dual-Gauge Regulator |
|---|---|---|
| Pressure gauges | Output pressure only | Output pressure + tank level |
| Gas remaining indicator | No | Yes |
| Precision control | Moderate | High |
| Best for | Occasional home use | Regular home use, professional kitchens, wine preservation |
| Typical price range | Lower | Higher |
| Compatible with filtration | Sometimes (check inline port) | Yes (with inline filter attachment) |
The dual-gauge design earns its cost in professional settings. A pastry chef mid-service does not want to discover an empty tank by dispensing flat cream. The tank-level gauge removes that guesswork. For wine preservation — where you might charge a single bottle every few days — dual gauges also make sense because you can track gas consumption across many sessions.
Using a Galaxy Gas Valve and Regulator Together
Galaxy Gas tanks have become a popular source of food-grade N2O for both home cooks and culinary professionals. A galaxy gas valve follows the standard M11×1mm thread pattern, so any regulator built for that spec will connect correctly. The regulator threads clockwise onto the valve, and the tank valve opens counterclockwise — a detail worth confirming before applying force in the wrong direction.
A galaxy gas regulator setup gives you precise flow control that a standard charger-and-dispenser system cannot match. With individual chargers, you're adding a fixed dose each time. With a tank and regulator, you charge to a specific pressure reading and stop — no guessing, no over-pressurizing. For a galaxy gas whipped cream dispenser setup charging 500 ml of heavy cream, that typically means setting the output to 8-10 bar and releasing until the gauge holds steady.
One detail that most guides skip: food-grade N2O can carry trace oils and fine particulates from the manufacturing process. These don't affect the gas itself, but they accumulate inside your dispenser and hose over time. Adding an inline N2O filter between the regulator outlet and the hose eliminates that buildup at the source. The case for N2O filtration with Galaxy Gas tanks goes into this in detail.
Wine Preservation Gas: Getting the Pressure Right
Wine preservation gas applications require a lighter touch than whipped cream. When purging an open bottle with N2O to displace oxygen, you're not trying to build pressure — you're displacing air with gas and then sealing the bottle. A regulator set too high wastes gas and can carbonate the wine slightly. The target output for wine preservation is typically 1-3 bar, well below the levels used for cream.
A dual-gauge regulator is especially useful here because you can see both what you're delivering and how much remains in the tank. Wine preservation is inherently a low-volume, high-frequency use case: a restaurant by-the-glass program might preserve a dozen open bottles each evening. Tracking gas consumption across service helps with inventory planning.
Whippiphany's complete guide to N2O wine preservation covers the purging method, closure selection, and how long different wine styles stay fresh under gas.

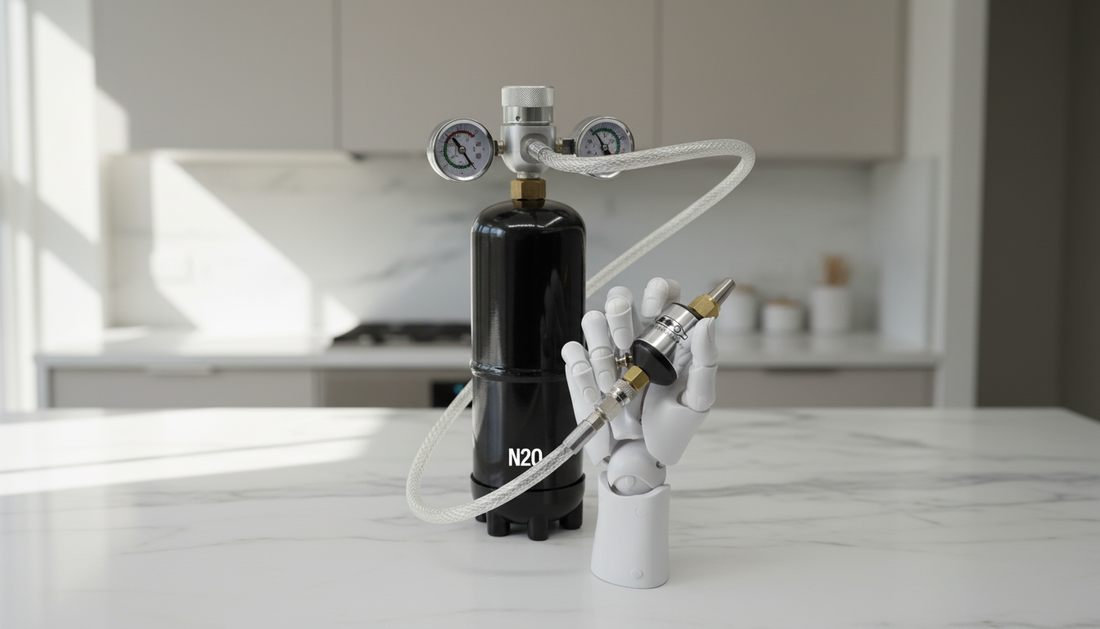

The Whippiphany Deluxe 2.0 System: Regulator and Filter Combined
Most N2O regulators do not include filtration. That matters because even food-grade gas contains trace contaminants that degrade cream quality and leave deposits in dispensers over time. The Whippiphany Deluxe 2.0 System pairs a heavy-duty dual-gauge regulator with the Whippiphany N2O Filter — copper-core, 1-micron filtration — in a single connected setup.
The regulator handles pressure reduction and monitoring. The filter handles contaminant removal before gas reaches your dispenser. Together, they address the two main failure points in a tank-and-dispenser setup: inconsistent pressure and unfiltered gas.
Key specifications for the Deluxe 2.0 System:
- Compatible tank formats: 580g, 615g, and 3.3L N2O cylinders (M11×1mm valve)
- Gauges: Dual — tank level (high pressure) and output pressure (low pressure)
- Filtration: Copper-core, 1-micron inline filter
- Applications: Whipped cream dispensers, wine preservation, rapid flavor infusions
- Construction: Heavy-duty for repeated daily use
For culinary professionals who run a Whippiphany N2O Filter on their existing regulator, the Deluxe 2.0 consolidates both into one unit. Browse the full N2O tank regulator collection to compare options.
Safety note: Nitrous oxide should only be used as directed for culinary purposes. Misuse of N2O products is dangerous and illegal.
What is a nitrous oxide regulator used for in a kitchen?
A nitrous oxide regulator controls the flow of N2O from a tank to a whipped cream dispenser, allowing precise pressure settings for different cream volumes and applications. It replaces the fixed-dose approach of individual chargers with adjustable, repeatable pressure readings. Culinary uses include whipped cream, flavored foams, rapid infusions, and wine preservation — each requiring a different output pressure setting.
Can I use a galaxy gas regulator with other N2O tank brands?
Yes. Most culinary N2O tanks — including Galaxy Gas, SmartWhip, Cream Deluxe, and Whippit tanks — use M11×1mm valve threads, which is the standard for food-grade cylinders. A regulator built for this thread size works across compatible brands. Always verify the valve thread specification on your tank before purchasing a regulator, as some specialized or regional brands use non-standard connections.
Do whipped cream chargers and nitrous oxide tanks use the same regulator?
No. Whipped cream chargers (the small 8g cartridges) insert directly into the dispenser head without a regulator — the dispenser itself controls the dose. A regulator is used with larger N2O tanks (580g and up). If you're upgrading from individual whipped cream chargers to a tank setup, you will need to add a regulator and connecting hose to your dispenser system.
What pressure setting should I use for whipped cream?
Output pressure depends on the cream volume in your dispenser. For 250 ml of heavy cream, 12 bar (174 psi) is typical. For 500 ml, 10-12 bar works for most dispensers. Thicker cream or lower fat content may require slight adjustments. Start at the lower end of the recommended range, dispense a test charge, and increase by 1-2 bar if the output is too loose. Avoid exceeding 14 bar to protect the dispenser seals.
Does filtered N2O make a difference for whipped cream quality?
Filtered N2O produces cleaner, more neutral-tasting whipped cream. Food-grade nitrous oxide can carry trace compressor oils and fine particulates from the manufacturing process. These don't affect food safety, but they can impart a faint off-flavor — noticeable in plain cream or delicate preparations. A copper-core, 1-micron inline filter installed between the regulator and the hose removes these contaminants before gas reaches the dispenser. The effect is most noticeable in high-fat cream at lower sugar levels.
See the full N2O filter bundles or read the whipped cream dispenser tips guide for additional setup recommendations.
Nitrous oxide should only be used as directed for culinary purposes. Misuse of N2O products is dangerous and illegal.
